Sewer Nozzles

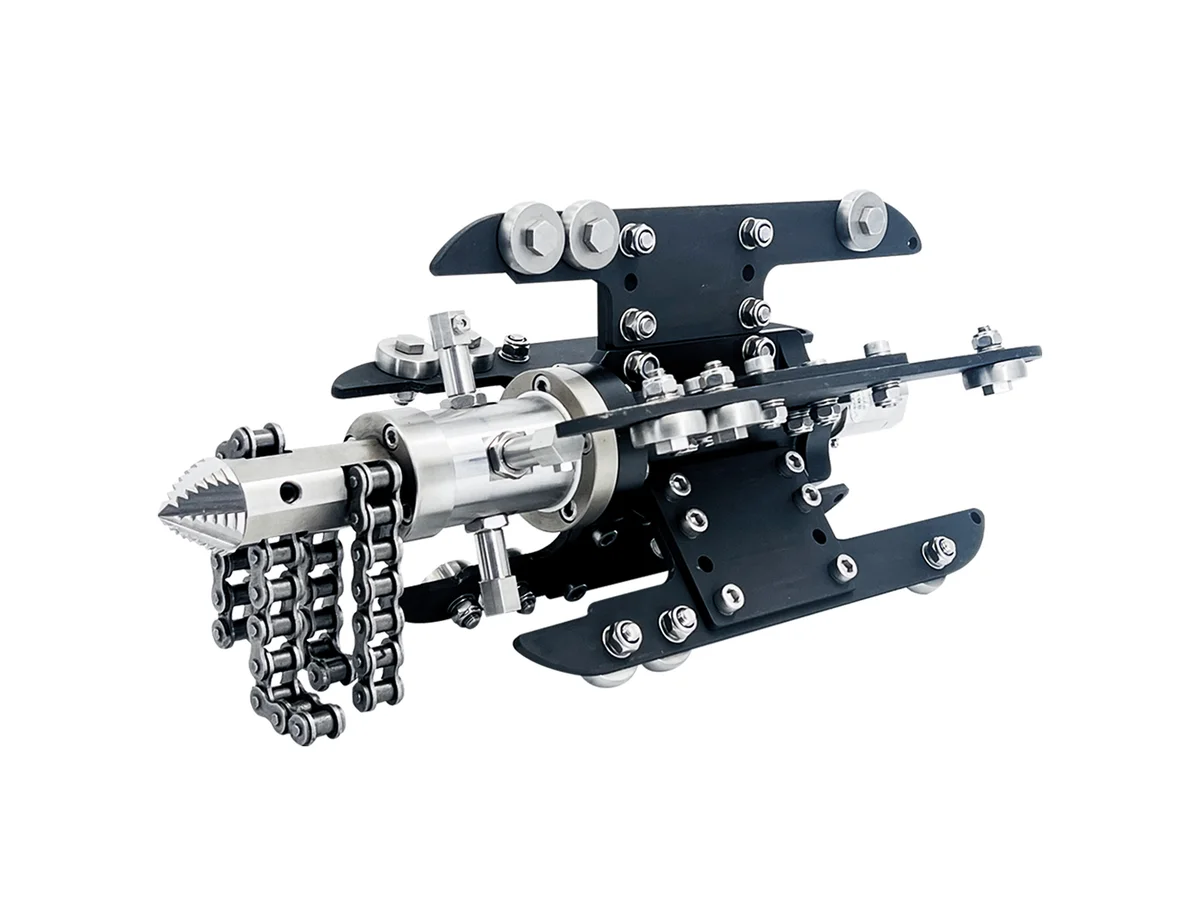

Chain Cutter Nozzle
Hardened steel nozzle, replaceable ceramics, multi-caliber pipeline cleaning
Product Variants & Specifications
Choose a variant to view detailed specifications
| Model | Hose Connection | Flow (LPM) | Pressure (Bar) | Rear Jets | Dimensions (mm) Φ x L | Working DN (mm) | Weight (Kg) | Rotating Jets |
|---|---|---|---|---|---|---|---|---|
 JP17 | 1" F | 215 | 137 | 10 x M10x1 | 192*502 | 200 | 17 | 4 x M10X1 |
 JP19 | 1" F | 250 | 137 | 10 x M10x1 | 242*502 | 250 | 19 | 4 x M10X1 |
 JP25 | 1" F | 270 | 137 | 10 x M10x1 | 283 x 569 | 300-800 | 25 | 4 x M10X1 |
About This Product
The nozzle is made of wear-resistant hardened stainless steel. Choose suitable Kits and chains for different pipe sizes before operation, and use the high-pressure swivel together. The standard configuration can be operated in pipes of DN300/350/400, while the Extension Kits will increase the nozzle operation up to DN800. All ceramic inserts are replaceable. Application: Removing roots, ice, limestone, concrete,etc. in pipelines. Interface Thread: NPT or BSPP Max Pressure: 172Bar. Different flows and pressures are available on request.
