Sewer Nozzles

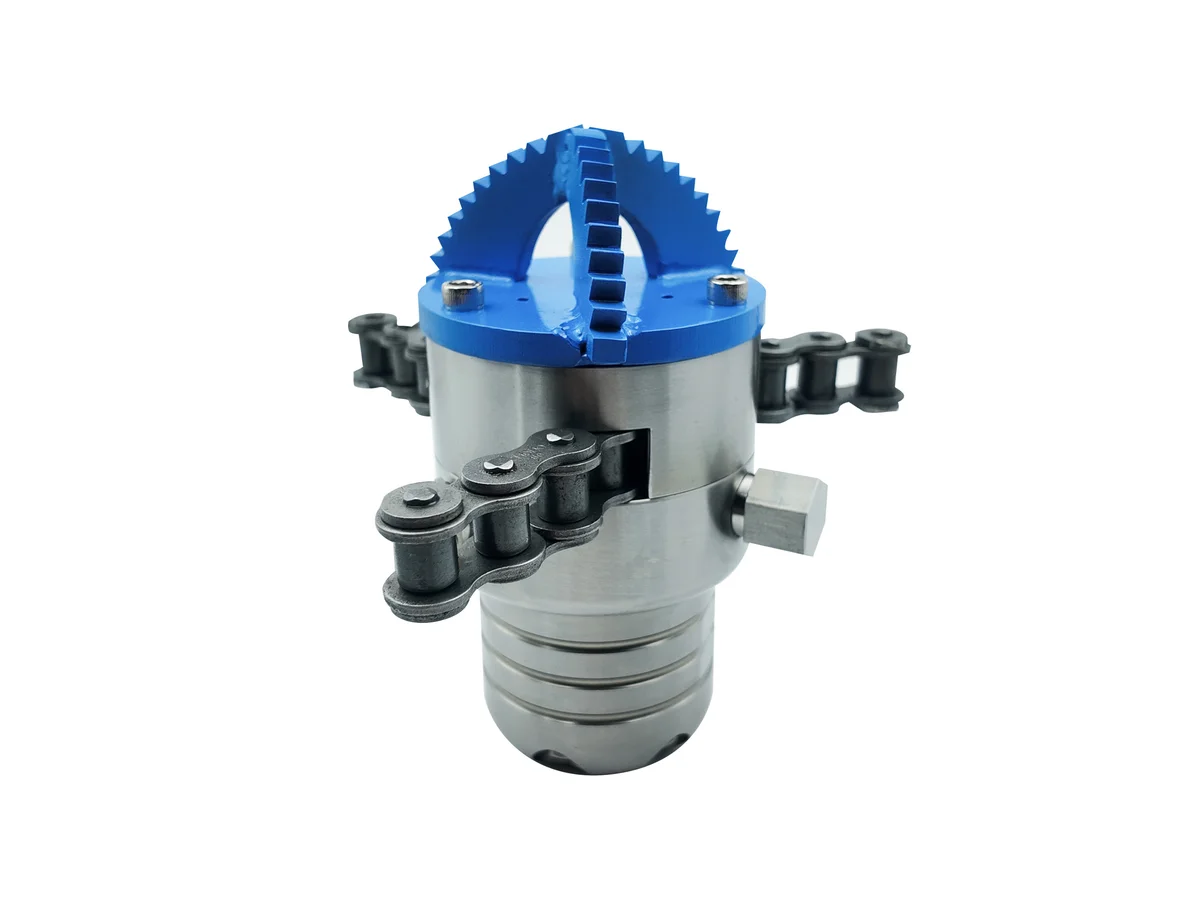

Chain Pagoda Nozzle
Wear-resistant steel nozzle, matched chains, replaceable ceramics, two specs kits
Product Variants & Specifications
Choose a variant to view detailed specifications
| Model | Hose Connection | Flow (LPM) | Pressure (Bar) | Rear Jets | Dimensions (mm) Φ x L | Working DN (mm) | Weight (Kg) | Rotating Jets |
|---|---|---|---|---|---|---|---|---|
 LTBT5.3 | 1" | 230 | 200 | 6 x M10x1 | 125 x 195 | 200-600 | 5.3 | 3 x M10x1 |
 LTBT5.3-1 | 1" | 230 | 200 | 6 x M10x1 | 125 x 195 | 200-600 | 5.3 | 3 x M10x1 |
About This Product
The nozzle is made of wear-resistant hardened stainless steel, different chains for different pipe sizes, must be used together with Extension Kit. It can remove the root, grease and mineral deposits more easily.All ceramic inserts are replaceable. The LTBT5.3 Kits contains Nozzles, DN200-250-300 Chains and tool kit. The LTBT5.3-1 Kits contains Nozzles, DN400-500-600 Chains and tool kit. Interface Thread: NPT or BSPP Max Pressure: 200Bar. Different flows and pressures are available on request.
