Sewer Nozzles

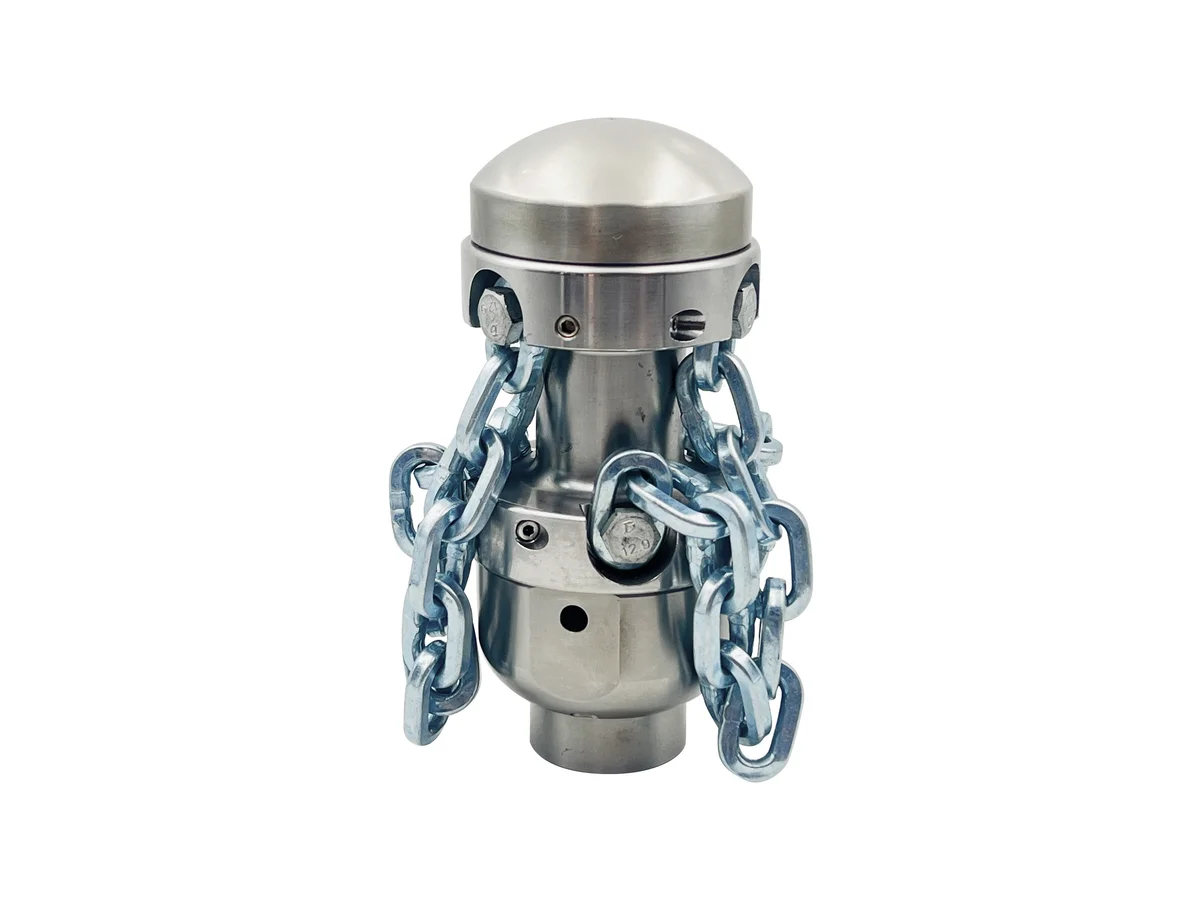

Crossbow Nozzle

Wear-resistant steel nozzle cuts pipe deposits, replaceable inserts durable for diverse pipes

Crossbow Nozzle

Product Variants & Specifications

BN3.3

BN3.3 Specifications

Hose Connection1"F
Flow (LPM)170
Pressure (Bar)250
Rear Jets4 x M6
Dimensions (mm) Φ x L74 x 164.5
Working DN (mm)225-600
Weight (Kg)3.3
Rotating Jets6 x M6

About This Product

The nozzle is made of wear-resistant hardened stainless steel, high-strength chains provide extremely effective cutting forces. Different chain sizes together with Extension Kit are used in conjunction to accommodate different working pipe sizes.Nozzles can be purchased in sets or individually. All ceramic inserts are replaceable, which extend the service life several times than drilled nozzles. Application: Removing roots, ice, limestone, concrete, mineral deposits,etc. in pipelines. Interface Thread: NPT or BSPP Max Pressure: 250Bar. Different flows and pressures are available on request.

Interested in Crossbow Nozzle?

Contact our team for more information, technical specifications, and pricing
