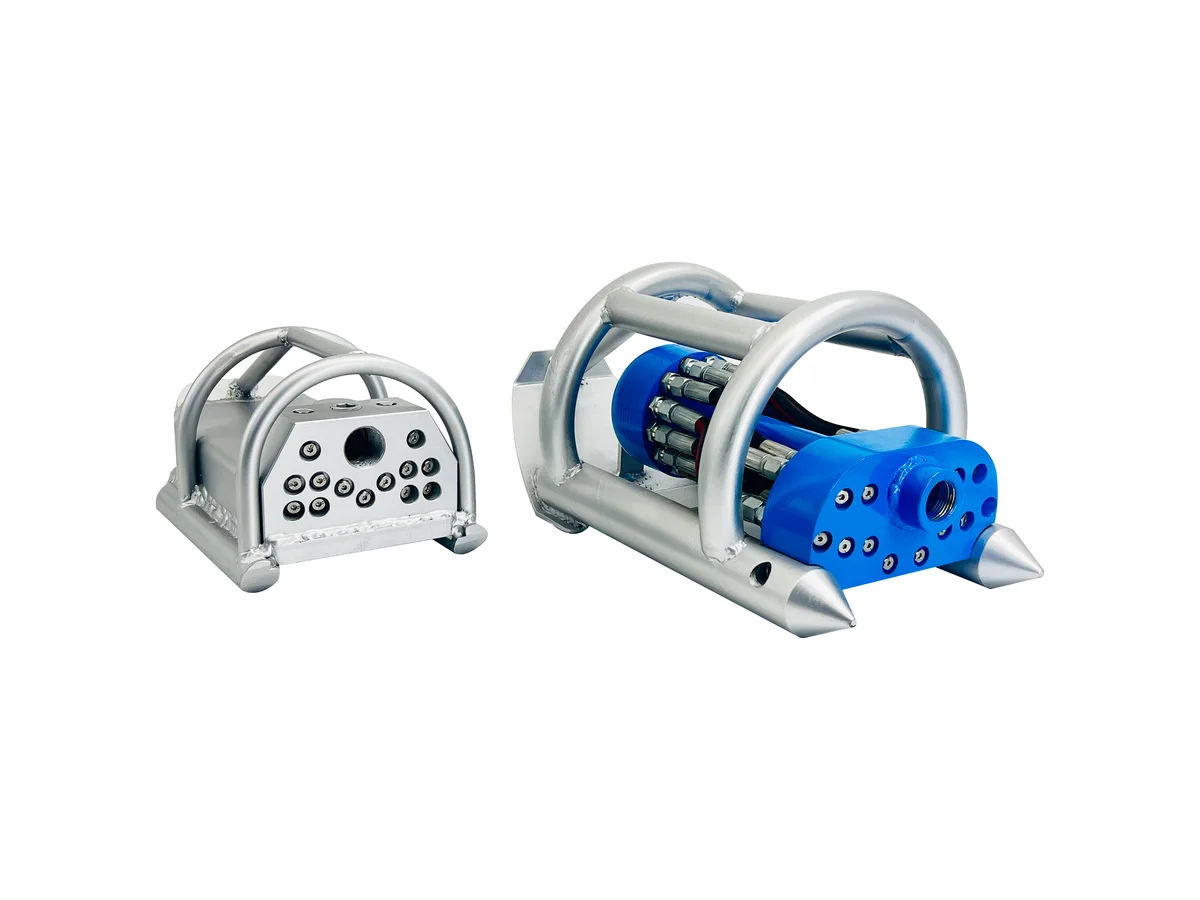

Floor Cleaner Nozzle
Wear-resistant steel nozzle, replaceable ceramic inserts for large pipe dirt removal
Product Variants & Specifications
Choose a variant to view detailed specifications
| Model | Hose Connection | Flow (LPM) | Pressure (Bar) | Rear Jets | Dimensions (mm) Φ x L | Working DN (mm) | Weight (Kg) |
|---|---|---|---|---|---|---|---|
 TC15 | 1"F | 170 | 200 | 13 x M10x1 | 337*202*177 | 400-1500 | 15 |
 TC20 | 1"F | 215 | 200 | 13 x M10x1 | 375*222*204 | 400-1500 | 20 |
 TC25 | 1"F | 270 | 200 | 13 x M10x1 | 425*242*216 | 400-1500 | 25 |
 TC30 | 1"F | 315 | 200 | 12 x M10x1 | 513*270*227 | 400-1800 | 30 |
About This Product
The nozzle is made of wear-resistant hardened steel, it has better traction and removal capacity than conventional nozzles because of its low-inclination, ideal for removing sand, debris, etc. of large flat pipes. All ceramic inserts are replaceable, being used together with straight swivel. Application: Removing heavy or compacted solids, sludge, stones and bricks in large pipelines. Interface Thread: NPT or BSPP Max Pressure: 250Bar. Different flows and pressures are available on request.
Interested in Floor Cleaner Nozzle?
Contact our team for more information, technical specifications, and pricing
