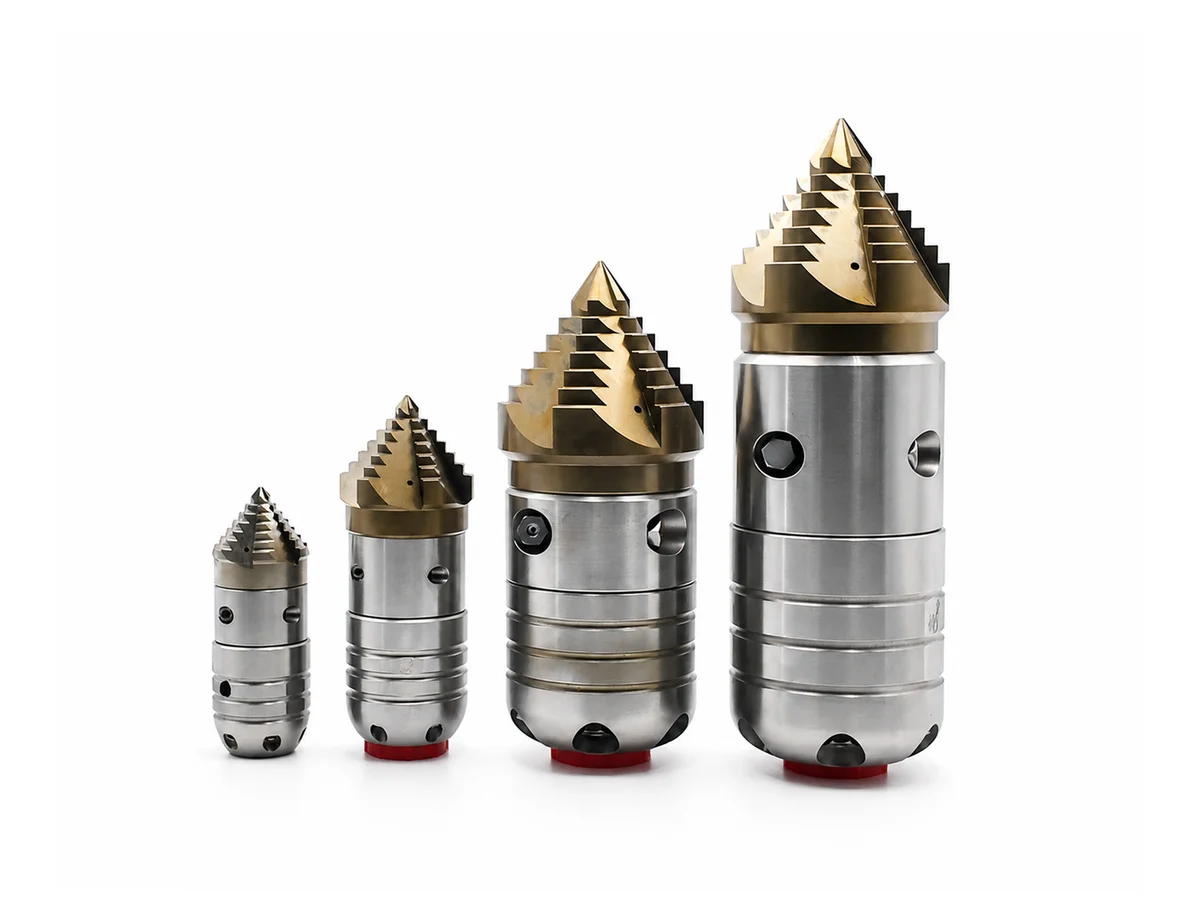

Pagoda Nozzle
Made of wear-resistant hardened stainless steel, this nozzle uses high-pressure rotating water jets to clean pipeline dirt. Replaceable ceramic inserts greatly prolong service life, ideal for rainwater and sewage pipe cleaning.
Product Variants & Specifications
Choose a variant to view detailed specifications
| Model | Hose Connection | Flow (LPM) | Pressure (Bar) | Rear Jets | Dimensions (mm) Φ x L | Working DN (mm) | Weight (Kg) | Rotating Jets |
|---|---|---|---|---|---|---|---|---|
 CBT0.5 | 3/8" F | 60 | 137 | 6 x M6 | 36 x 98 | 60-150 | 0.5 | 4 x M6 |
 CBT1 | 3/4" F | 170 | 137 | 6 x M6 | 49 x 121 | 80-200 | 1 | 4 x M6 |
 CBT3 | 1" F | 215 | 172 | 6 x M10x1 | 74 x 172 | 100-300 | 3 | 4 x M10x1 |
 CBT5 | 1" F | 215 | 172 | 6 x M10x1 | 74 x 220 | 100-300 | 5 | 4 x M10x1 |
About This Product
The nozzle is made of wear-resistant hardened stainless steel. High-pressure rotating water jets from the pump impacts the dirt and deposits from pipelines by its strong kinetic energy, so as to achieve the purpose of cleaning & penetrating. All ceramic inserts are replaceable, which extend the service life several times than drilled nozzles. Application: Removing grease, sediment, roots, etc. from various types of pipelines, e.g. rainwater pipes, sewage pipes. Interface Thread: NPT or BSPP Max Pressure: 172Bar. Different flows and pressures are available on request.
