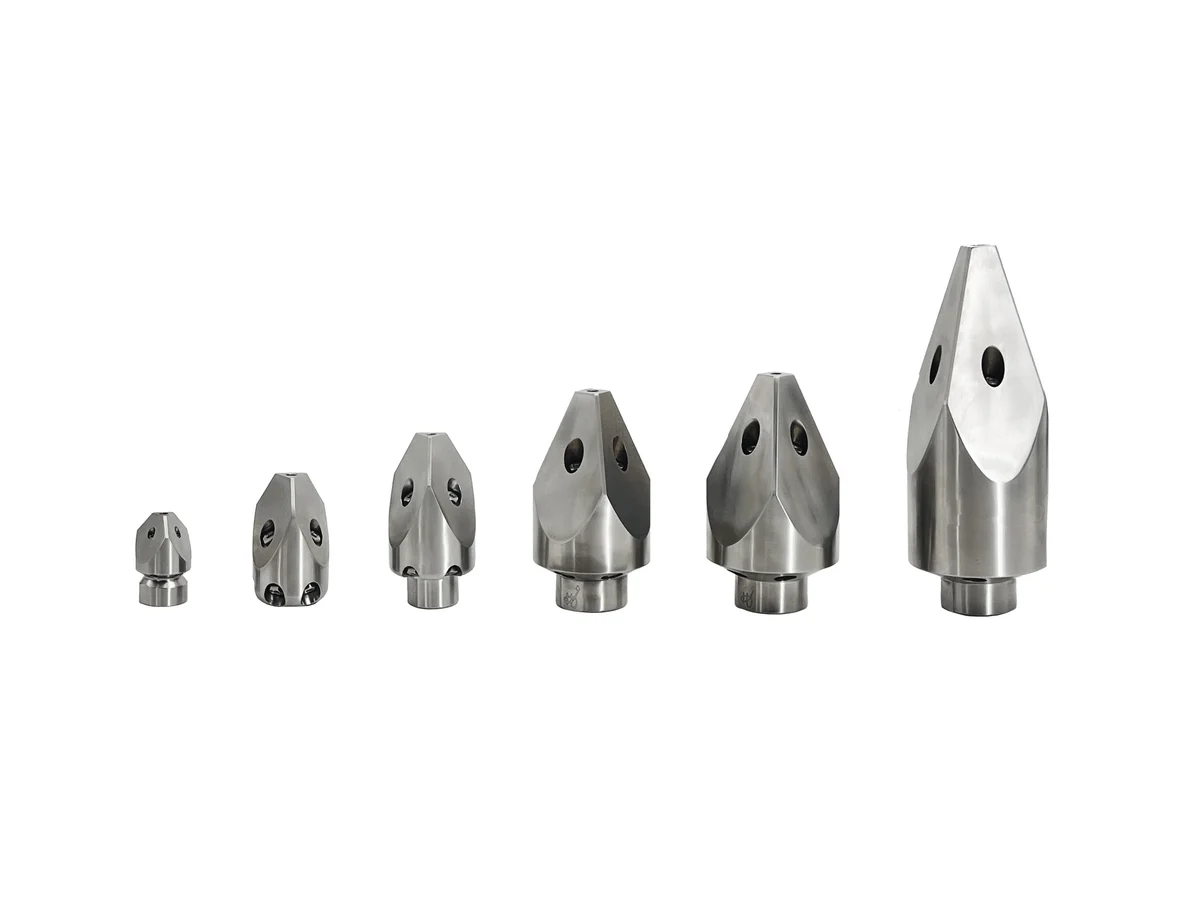

Penetrator Nozzle
Wear-resistant hardened stainless steel nozzle with strong penetration to clear pipe blockages.Replaceable ceramic inserts for longer life.Not for sharp bends & plastic pipes.Thread: NPT/BSPP. Max pressure: 300Bar, customizable.
Product Variants & Specifications
Choose a variant to view detailed specifications
| Model | Hose Connection | Flow (LPM) | Pressure (Bar) | Front Jets | Rear Jets | Dimensions (mm) Φ x L | Working DN (mm) | Weight (Kg) |
|---|---|---|---|---|---|---|---|---|
 CC0.3-1 | 1/2"F | 50 | 200 | 4 x M6 | 6 x M6 | 39 x 65 | 60-200 | 0.3 |
 CC1-1 | 3/4"F | 135 | 200 | 1 x M8+3 x M10x1 | 6 x M10x1 | 54.5 x 94 | 100-400 | 1 |
 CC1.5-1 | 3/4"F | 135 | 200 | 1 x M8+3 x M10x1 | 6 x M10x1 | 63 x 125 | 100-400 | 1.5 |
 CC3.5-1 | 1"F | 215 | 200 | 1 x M8+4 x M10x1 | 6 x M10x1 | 87 x 157 | 150-500 | 3.5 |
 CC4.5-1 | 1"F | 250 | 200 | 1 x M8+4 x M10x1 | 6 x M10x1 | 97 x 170 | 200-600 | 4.5 |
 CC8-1 | 1-1/4"F | 315 | 200 | 1 x M8+4 x M10x1 | 6 x M10x1 | 99 x 229 | 200-800 | 8 |
About This Product
The nozzle is made of wear-resistant hardened stainless steel, it has an excellent high penetrating thrust with multiple forward-penetrating jets.Its sharp edges can cut, break and penetrate various blockages. All ceramic inserts are replaceable, which extend the service life several times than drilled nozzles. Application: Cleaning complete blockage caused by rocks, ice, limestone, condensation, roots, etc. in pipelines. Attention: It recommends to do not use this nozzle in sharp bends and plastic pipes due to the great destructive power of the sharp edges. Interface Thread: NPT or BSPP Max Pressure: 300Bar. Different flows and pressures are available on request.
