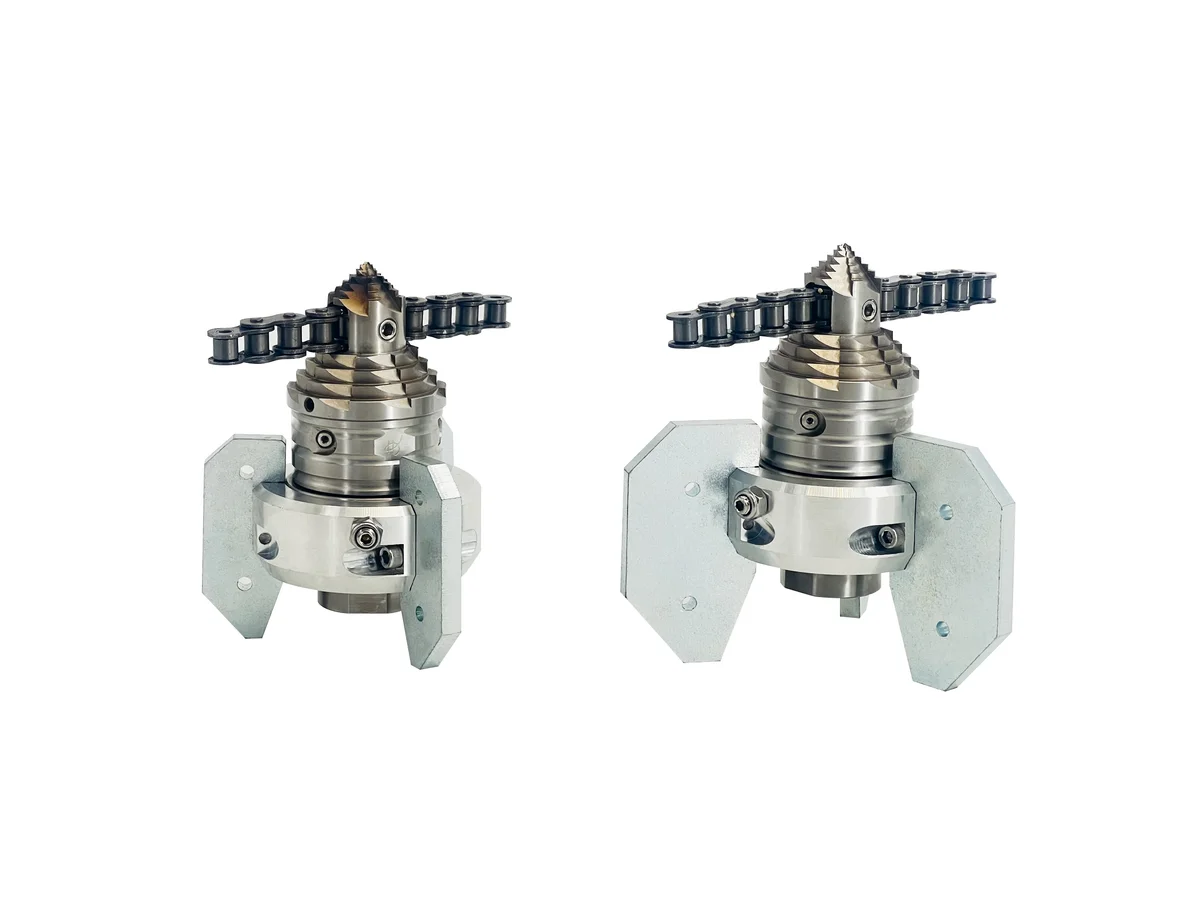

Root Cutter Nozzle
The nozzle is made of wear-resistant hardened stainless steel, different chains for different pipe sizes. It can remove the root, grease and mineral deposits more easily.All ceramic inserts are replaceable.
Product Variants & Specifications
Choose a variant to view detailed specifications
| Model | Hose Connection | Flow (LPM) | Pressure (Bar) | Rear Jets | Dimensions (mm) Φ x L | Working DN (mm) | Weight (Kg) | Rotating Jets |
|---|---|---|---|---|---|---|---|---|
 DSG-0.5 | 1/2" F | 70 | 270 | 6 x M6 | 36 x 68 | 50-150 | 0.4 | 3 x M6 |
 DSG-0.75 | 3/4" F | 190 | 200 | 4 x M6 | 53 x 92.4 | 100-200 | 1.1 | 3 x M6 |
 DSG-1 | 1" F | 300 | 137 | 6 x M8 | 70 x 150 | 100-300 | 3.3 | 3 x M8 |
About This Product
The nozzle is made of wear-resistant hardened stainless steel, different chains for different pipe sizes. It can remove the root, grease and mineral deposits more easily.All ceramic inserts are replaceable. This set includes: 1/2": Nozzle, centralizer (for 3"/4"), chain (for 3"/4") 3/4": Nozzle, centralizer (for 4"/6"), chain (for 4"/6") 1": Nozzle, centralizer (for 6"/8"), chain (for 6"/8") Interface Thread: NPT or BSPP Max Pressure: 250Bar. Different flows and pressures are available on request.
