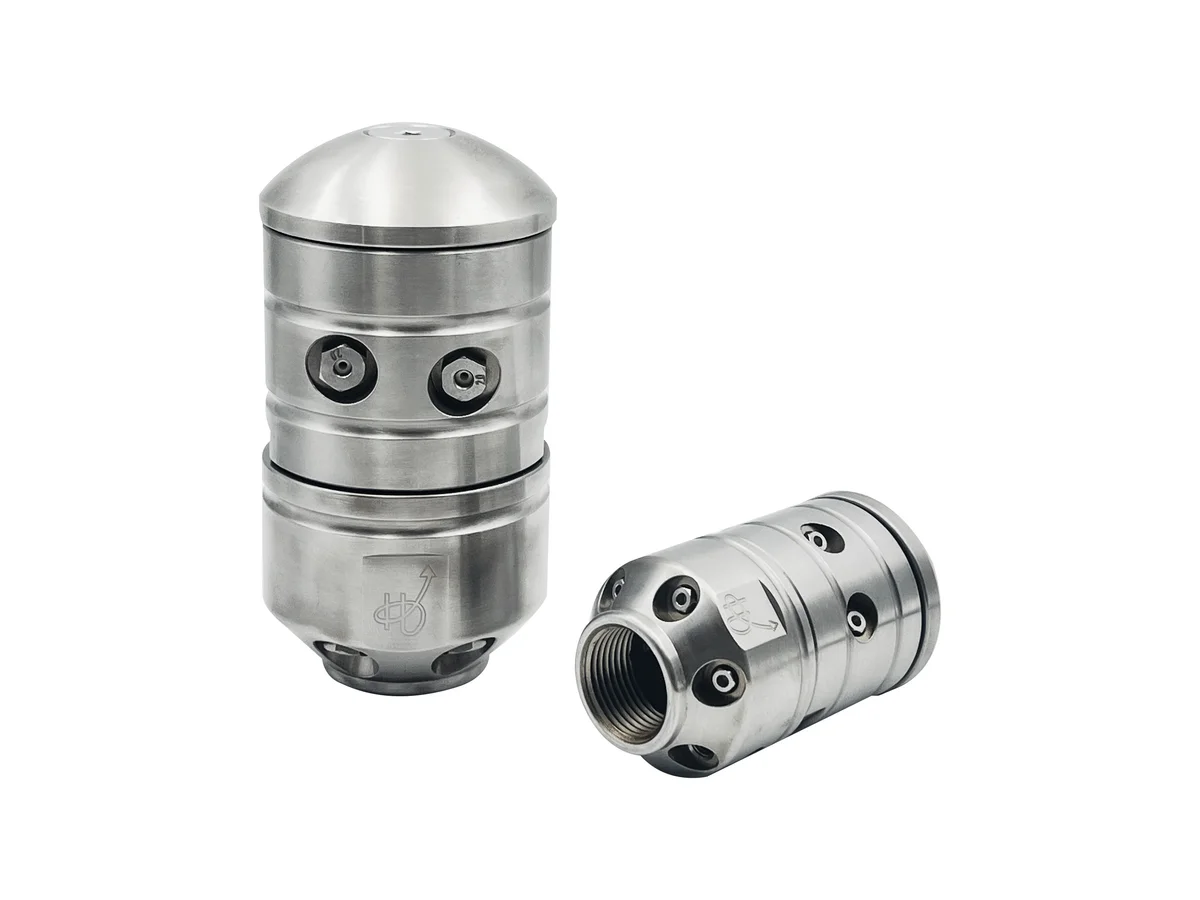

Rotor Nozzle
Made of hardened stainless steel, radial jets clean scale grease; replaceable inserts prolong service life for pipeline cleaning
Product Variants & Specifications
Choose a variant to view detailed specifications
| Model | Hose Connection | Flow (LPM) | Pressure (Bar) | Rear Jets | Dimensions (mm) Φ x L | Working DN (mm) | Weight (Kg) | Rotating Jets |
|---|---|---|---|---|---|---|---|---|
 GB0.36 | 1/2“F | 68 | 250 | 6 x M6 | 35 x 66 | 50-150 | 0.36 | 4 x M4 |
 GB1.2 | 3/4"F | 170 | 200 | 6 x M6 | 53 x 93.5 | 100-200 | 1.2 | 4 x M6 |
 GB3.1 | 1"F | 300 | 137 | 6 x M10x1 | 70 x 132 | 100-300 | 3.1 | 4 x M10x1 |
About This Product
The nozzle is made of wear-resistant hardened stainless steel, the aggressive and penetrating action generated by its radial jets is optimal for removing scale, grease, etc. In order to get more even and effective cleaning, it is recommended to use a suitable Centralizer to ensure the nozzle is located in the right place in pipes. All ceramic inserts are replaceable, which extend the service life several times than drilled nozzles. Application: Removing scale, grease, roots,etc. from pipelines. Interface Thread: NPT or BSPP Max Pressure: 250Bar. Different flows and pressures are available on request.
Interested in Rotor Nozzle?
Contact our team for more information, technical specifications, and pricing
