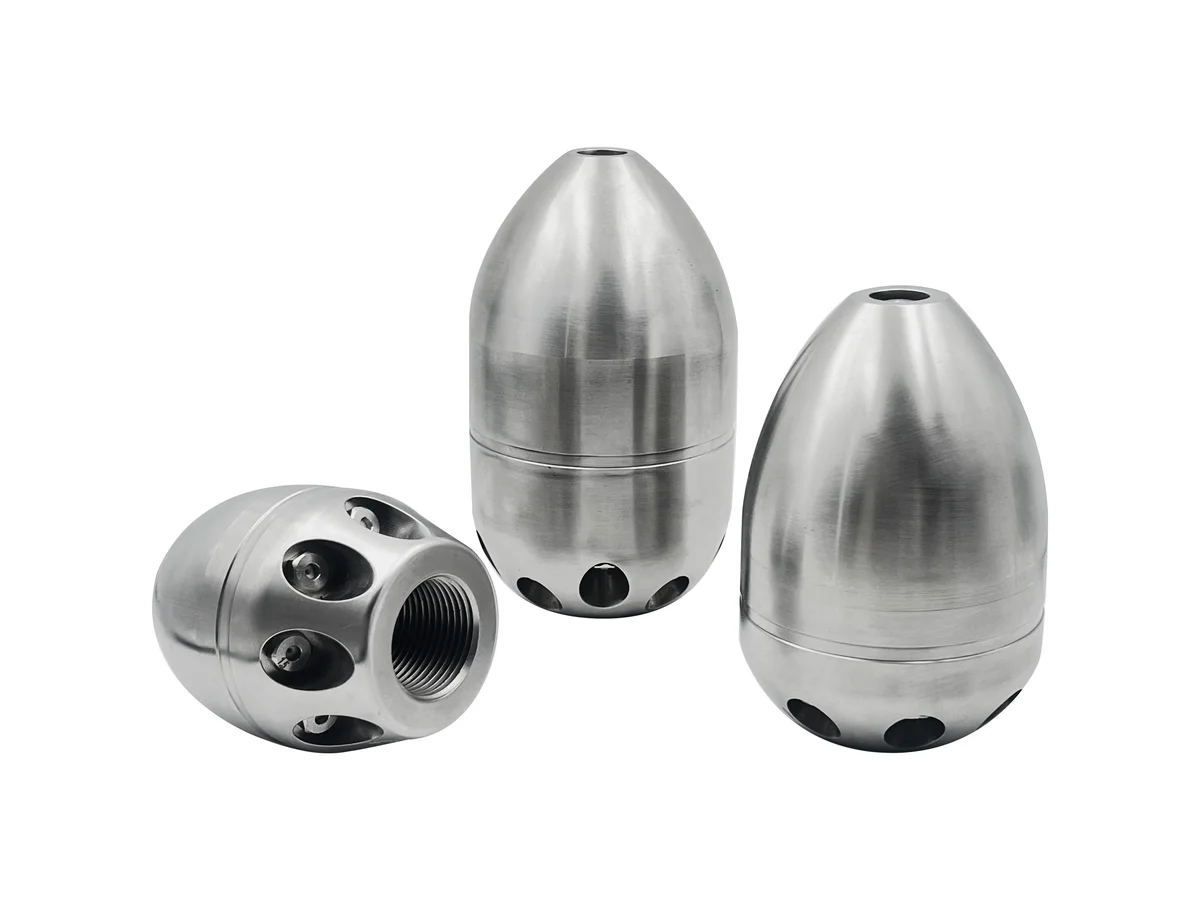

Torpedo Nozzle
Wear-resistant hardened stainless steel nozzle with interchangeable ceramic insert & plug. Replaceable ceramic parts significantly extend service life.
Product Variants & Specifications
Choose a variant to view detailed specifications
| Model | Hose Connection | Flow (LPM) | Pressure (Bar) | Front Jets | Rear Jets | Dimensions (mm) Φ x L | Working DN (mm) | Weight (Kg) |
|---|---|---|---|---|---|---|---|---|
 SL0.5 | 1/2”F | 100 | 200 | 1 x M6 | 6 x M6 | 44.5 x 59 | 80-200 | 0.5 |
 SL1.5 | 1”F | 135 | 200 | 1 x M10x1 | 8 x M10x1 | 71.5 x 96 | 100-400 | 1.5 |
 SL3 | 1”F | 170 | 200 | 1 x M10x1 | 8 x M10x1 | 74 x 130 | 100-600 | 3 |
 SL3.5 | 1”F | 170 | 200 | 1 x M10x1 | 8 x M10x1 | 85.5 x 123 | 200-600 | 3.5 |
 SL5 | 1”F | 215 | 200 | 1 x M10x1 | 10 x M10x1 | 89 x 148 | 200-600 | 5 |
 SL6.5 | 1”F | 215 | 200 | 1 x M10x1 | 10 x M10x1 | 89 x 180 | 200-600 | 6.5 |
 SL8 | 1”F | 270 | 200 | 1 x M10x1 | 12 x M10x1 | 97.5 x 185 | 300-1200 | 8 |
 SL9.3 | 1”F | 315 | 200 | 1 x M10x1 | 12 x M10x1 | 103 x 200 | 300-1200 | 9.3 |
About This Product
The nozzle is made of wear-resistant hardened stainless steel, with a front ceramic insert and a plug (interchangeable). All ceramic inserts are replaceable, which extend nozzle's service life several times than drilled nozzles. Application: Removing and breaking up stubborn blockages in pipelines, as well as cleaning other kinds of obstructions,e.g.limestone deposits, sand, gravel, sludge, grease, mud. Interface Thread: NPT or BSPP Max Pressure: 300Bar. Different flows and pressures are available on request.
